Car Parking Gas Detection Systems
Description

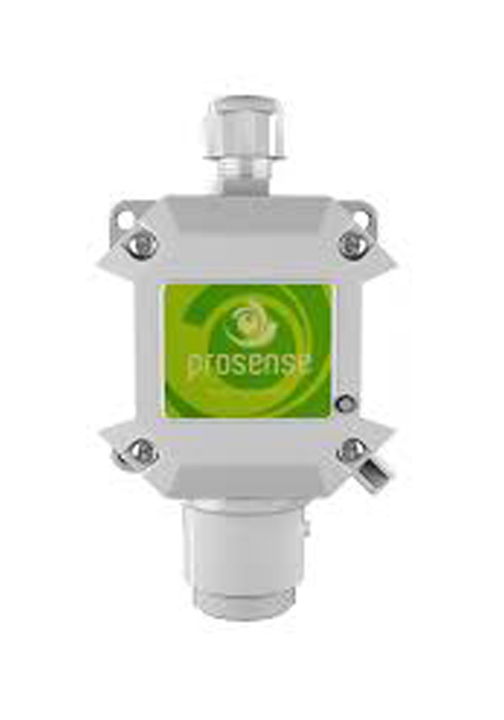

Prosense PPS+ Series addressable gas detectors designed for continuously monitoring of carbon monoxide, nitrogen dioxide and LPG gases in the tunnels and underground car parks.
High quality electrochemical and catalytic sensors employed gas detectors show excellent results in PPM and LEL ranges.
PPS+ Series gas detectors communicate with Prosense PPS Manager Control Panel via serial connection.
Features
• High quality electrochemical sensor and catalytic sensor
• RS485 Modbus RTU communication interface
• Relay Outputs (only available in PPS-R model)
• ABC Plastic, IP54 (PPS, PPS+, PPS-R)
• Die-cast aluminium enclosure, IP65 (PPS-AL)
• EN 50545-1:2015, EN 50270, 2014/30 EU(EMC)
• EN 61000-6-3, EN 60000-3-3, EN 60000-3-2, 2014/30 EU(EMC)

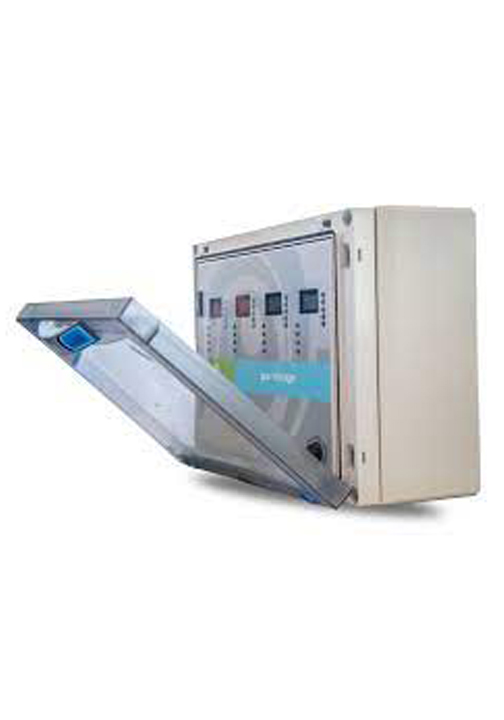

Features
• Up to 4 open loops
• Up to 32 detectors for each loop, total 128 detectors can be managed
• Monitor average or high alarm levels
• Each detector can be monitered separately
• 2x8 LCD screen for each zone
• 5 individual LED status for each zone
• 2 Fan and 1 Alarm relays for each zone
• 1 Alarm and 1 Fault relay outputs for monitoring overall system status
• Up to 800m cable length for each zone
• 2x12V-4.3A Battery connections
