YT-1200H-WH
Diffusion Gas Detector

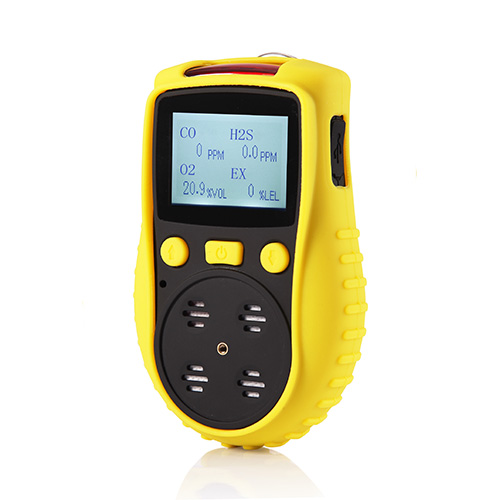

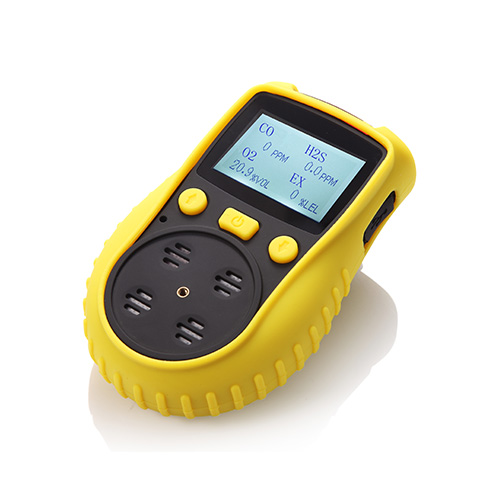

   YT-1200H-WH series gas detector is kind of mini size, low cost and high accuracy portable multi gas detector. Easy to operate, comprehensive functions, can measure toxic gases, flammable gases and oxygen gases, etc in hazardous environments. The detector is with back clip, protected by silicone case, suitable for different kinds of situations.

Product Advantage
  • Equipped with standard event logging(100 records), the record can be checked on the device.
  • Smart and lightweight design makes it comfortable to wear.
  • LCD dot matrix display.
  • One press to restore factory settings.
  • Ultra-high buzzer alarm sound, alarm with sound, light and vibration at the same time.
  • Optional data logging function, the data can be exportedto PC through software we provide.
  • Large capacity rechargeable battery, work continuously for a long time.
  • With alligator clip,convenient to take along.
  • Strong and durable plastics housing, exquisite and comfortable in touching.
  • Optional external pum

Technical parameters

  • Gas Detected : O2、CO、H2S、EX is the standard gas combine, other combine can be specified.
  • Sampling Method : Diffusion
  • Measure range : Specified according to application.
  • Resolution : Specified according to sensors.
  • Precision : <2-5% F.S.
  • Unit : ppm, mg/m3, %VOL， %LEL
  • Display : Monochrome dot matrix 128*128 LCD graphic display.
  • Backlight : Time of backlight is settable, when alarm the backlight will be auto on.
  • Data Logging  : 100000 readings. Interval time ranges from 10~3600 seconds are settable. (Optional function)
  • Event logging : 100 event records can be checked on device
  • Language : Chinese/English
  • Alarm type : sound, light, vibration.
  • Battery : 3.7V rechargeable lithium battery, with capacity of 2500mAh.
  • Working Time : 14h continuously (common 4 gases). 150h(without LEL sensor)

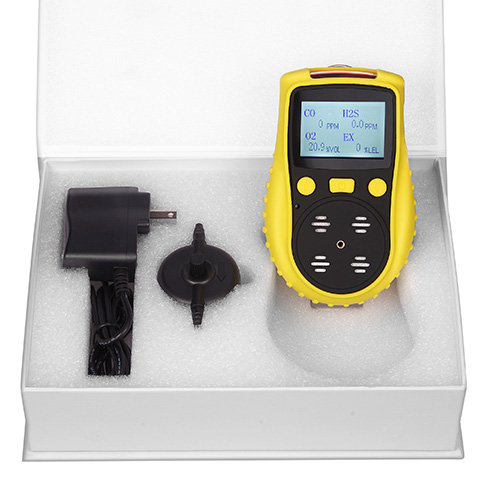

  • Charger : Travel charger. Charging time: 4~6h
  • Explosion-proof grade : Ex iaⅡCT4
  • Protection grade : IP65
  • Working temperature : 10℃～50℃
  • Working humidity : 15-95%%RH
  • Housing Material : ABS+ leather case
  • Dimension : 131*83*35mm（length*width*height）
  • Weight : 240g
  • Principle : Electrochemical(O2, CO, H2S), Catalytic combustion(EX), Specified according to sensors.
