Dräger PointGard 2700

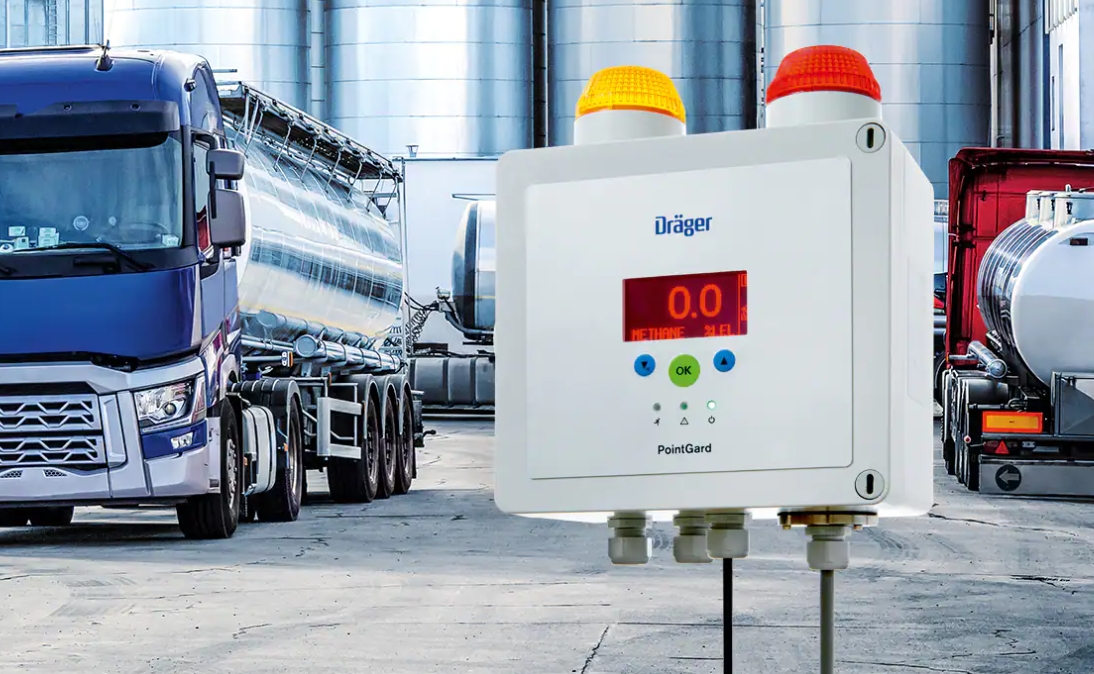

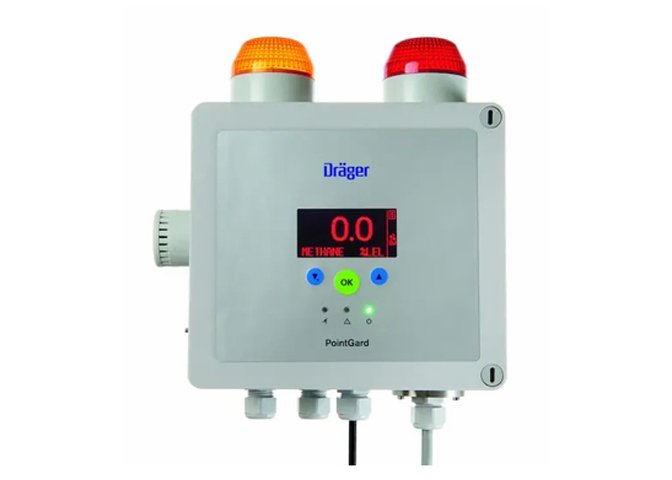

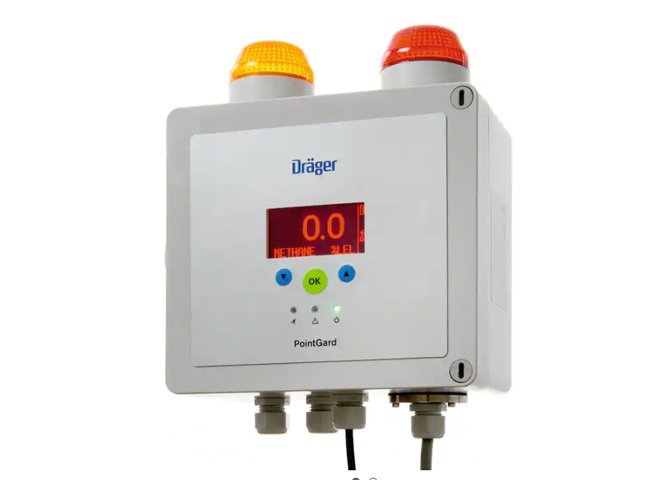

The Dräger PointGard 2700 is a self-contained gas detection system for the continuous area monitoring of flammable hydrocarbon gases and vapors in ambient air. PointGard 2700’s rugged, water-resistant housing comes complete with a horn and strobes, a built-in power supply, and external relays. It is compatible with a remotely mounted Dräger PIR 7000 Type 334 or Type 340 infrared gas sensor.

Flammable Gas Detectors

Sensor: IR Sensor
Installation: Non-explosion proof
Interface: 4-20 mA, Relays
IP class: IP 54
Special: Self-contained gas monitor, remotely mounted Dräger PIR 7000

Waterproof stainless steel IR sensor
Thanks to its innovative splash guard and waterproof enclosure, the PIR 7000 sensor is ready for extreme conditions such as areas with daily high-pressure wash-downs and extreme temperature and humidity levels. It is available with an aluminum or 316L stainless steel junction box.

Uses the high performance Dräger PIR 7000 infrared sensor
With its stainless steel 316L enclosure and drift free optics, the Dräger PIR 7000 is built for the harshest industrial environments such as offshore installations. The unique 4 beam signal stabilizing system makes the sensor resistant to dust or dirt deposits on the optical surfaces. Environmental and ageing effects are largely compensated ensuring long term, drift free operation. The integrated gas library with more than 70 gases provides a high degree of application flexibility. Each of the gases listed there can be picked from the menu and automatically cross-calibrated with a standard calibration gas such as methane or propane.

Flexible communications
PointGard can accommodate additional external alarm devices through its three built-in relays. In addition, a 4–20 mA signal with HART® output allows integration into a larger gas detection system.

Rugged and compact housing
PointGard’s glass fiber reinforced polyester housing is water and dust resistant with a 4X/IP66 rating. Its compact size allows it to easily fit most applications. Built-in cable glands make it easy to install.

Monitor remote areas up to 30 meters (98 feet) away

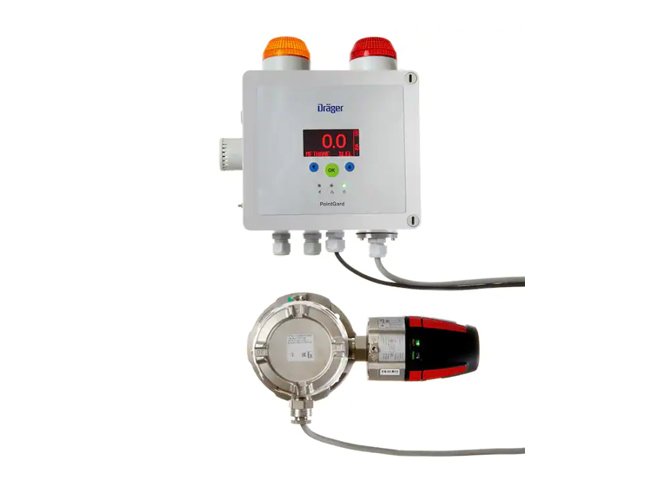

The Dräger PIR 7000 sensor is designed to be installed in Zone 1 classified hazardous areas remotely from the PointGard 2700 with a four-conductor shielded cable up to 30 meters (98 feet) long. The cable and Dräger PIR 7000 sensor must be ordered separately from the PointGard 2700.
